Polypropylene Fume Hood with Scrubber System Wet Scrubber Series FH-150-WS
Polypropylene Fume Hood - Wet Water Washer has a quality cleaning medium that collects mist and chemicals and directs them to the water tank.
The upper eliminator prevents mist from reaching the exhaust fan.
Fume cupboards are used to filter acids and prevent them from being released into the environment. The washer is built in as an integral part of the hood.
Polypropylene fume hoods are made of high-quality, non-corrosive polypropylene with excellent chemical resistance.
Fume hoods protect laboratory personnel from harmful fumes emitted by acids, hazardous gases and organic solvents. The hoods are designed to work with harsh chemicals and are independently CE certified.
• 8 mm welded polypropylene with high chemical resistance
• Polypropylene countertop - optional materials include
stainless steel, ceramic, epoxy and HPL.
• 5 mm front safety glass window with counterweight system
• Bottom ventilated base cabinet made of polypropylene
• Ventilation from both top and rear panels

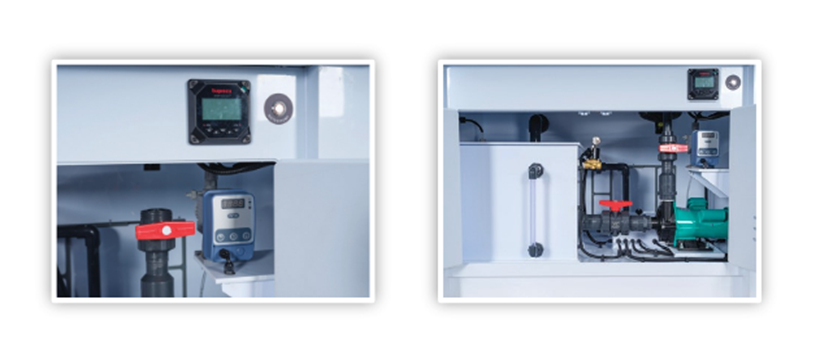

The functionality of the wet scrubber includes:
Spray Nozzles
Upper Defogger
Scrub Media
Water Pump
Water Tank
Easy access for maintenance and repair
800 LUX LED lighting,
working area (ex-proof light option)
7” color touch screen controlling the lighting
and electrical outlets
Optional upgrade to control systems:
AFA system includes 7" cool screen
Speedometer and alarm
The VAV system has a 10.1” screen.
Automatic air speed control (installed and
including VFD), temperature and humidity display
Active system includes automatic 10.1”
Flap movement and proximity detection system significantly reduces energy costs
Optional accessories such as faucets and sinks,
sockets, dock and outdoor fan
Automatic PH meter option
Dosing pump system
CE certified
Model options
FH-FAN-1500-300 Centrifugal fan 1.5 kW 2800 rpm / IE3 DIA 300 mm
FH-PP-KP4B Polypropylene cup sink (more sizes available, see website)
FH-FAN-750 Centrifugal fan 0.75 kW 2800 rpm / IE3 DIA 250 mm
FH-GTAP Gas tap
FH-KIT Kit for Fume Hood includes: 1 water tap, 1 gas tap, 1 sink and 4 electrical outlets
FH-SOCKET Power output
FH-VAV Airflow monitor with audible alarm VAV+VFD incl. 7-inch LCD touch screen controller
FH-WTAP Water tap
