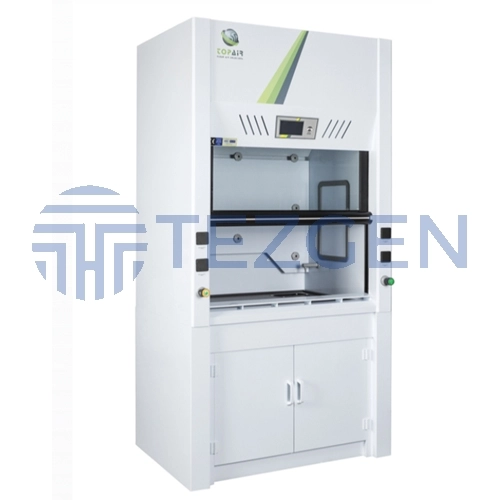

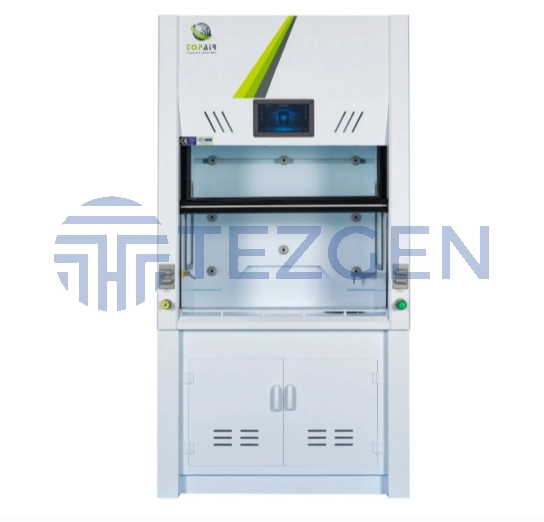

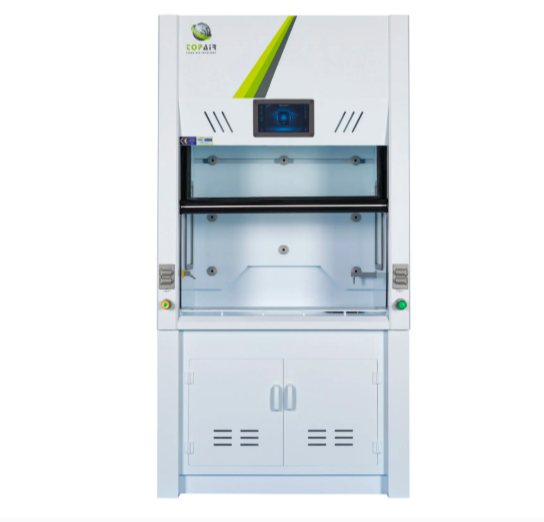

TopAir's Polypropylene Fume Hood is manufactured from high-quality, corrosion-resistant polypropylene with excellent chemical resistance.
The polypropylene fume hood protects laboratory personnel from harmful fumes released by acids, bases, hazardous gases, and organic solutions that conventional fume hoods cannot withstand.
Harmful and irritating chemical fumes are removed from the controlled environment to provide a safe and pleasant work environment.
The fume hood uses an external fan mounted on the roof or exterior wall to exhaust chemical vapors from the building.
The fume hoods are designed for use with harsh chemicals and are independently tested and certified to EN-14175 / CE / ASHRAE 110-1995.
Fume Hood Body Construction:
8 mm welded polypropylene with high chemical resistance.
Polypropylene worktop - optional materials include stainless steel, ceramic, epoxy, and HPL. 5 mm front safety glass with counterweight system
Polypropylene base cabinet with bottom ventilation
Ventilation from both top and rear panels
Basic control system: 7-inch basic color touchscreen controls lighting and outlets
• Optional control system upgrades:
▪ AFA: 7-inch display with AFA air speed indicator and alarm
▪ VAV: 10.1-inch display with VAV automatic air speed control (installed and VFD included), temperature and humidity display
▪ Active system: 10.1-inch display with energy-saving automatic sash movement and proximity detection
◦ Active system significantly reduces energy costs
• 800 lux LED lighting isolated from the work area
(Explosion-proof lighting option)
• Optional accessories such as faucets, sinks, outlets, deck, and outdoor fan
• EN-14175, ASHRAE 110-1995, CE certified
FH-FAN-1500-300 Centrifugal fan 1.5 kW 2800 rpm / IE3 DIA 300 mm

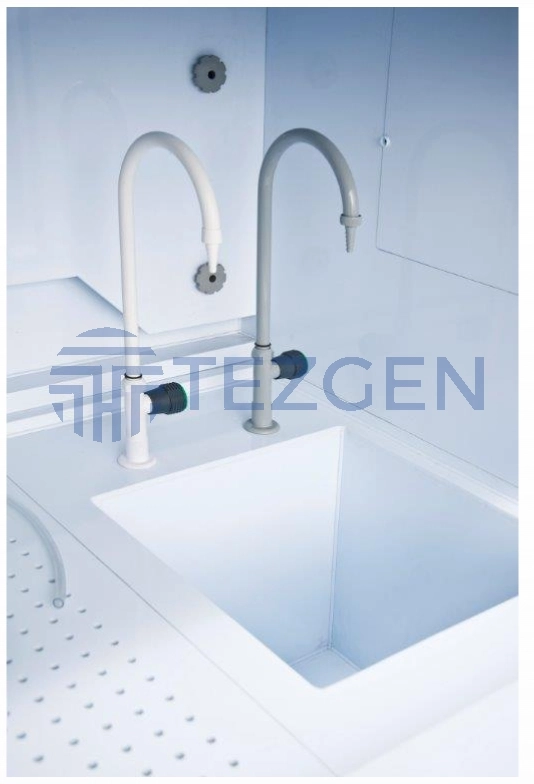

FH-PP-KP4B Sink with polypropylene cup (more sizes available, see website)
FH-FAN-750 Centrifugal fan 0.75 kW 2800 rpm / IE3 DIA 250 mm
FH-GTAP Gas tap
FH-KIT for fume hood includes: 1 water tap, 1 gas tap, 1 sink, and 4 electrical outlets
FH-SOCKET Power outlet
FH-VAV Airflow monitor with audible alarm, VAV+VFD, including 7-inch LCD touchscreen controller
FH-WTAP Water tap
