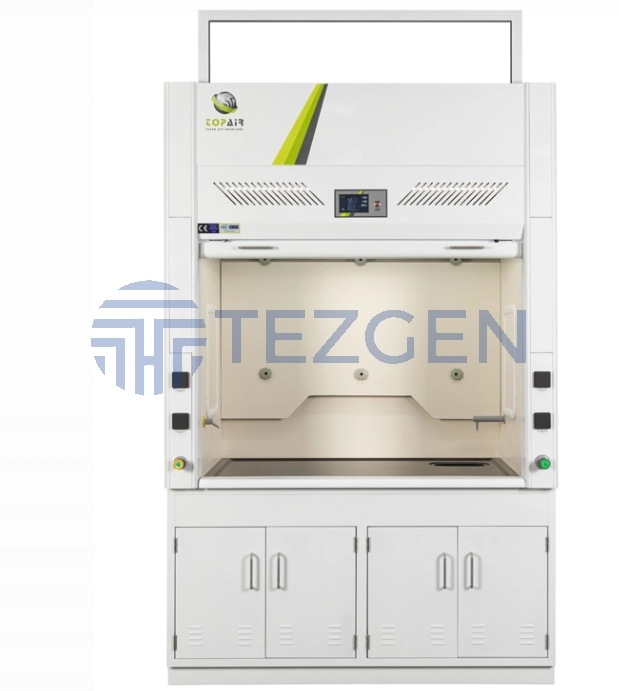

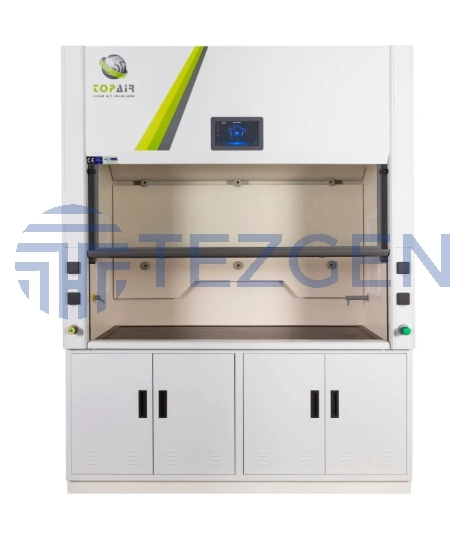

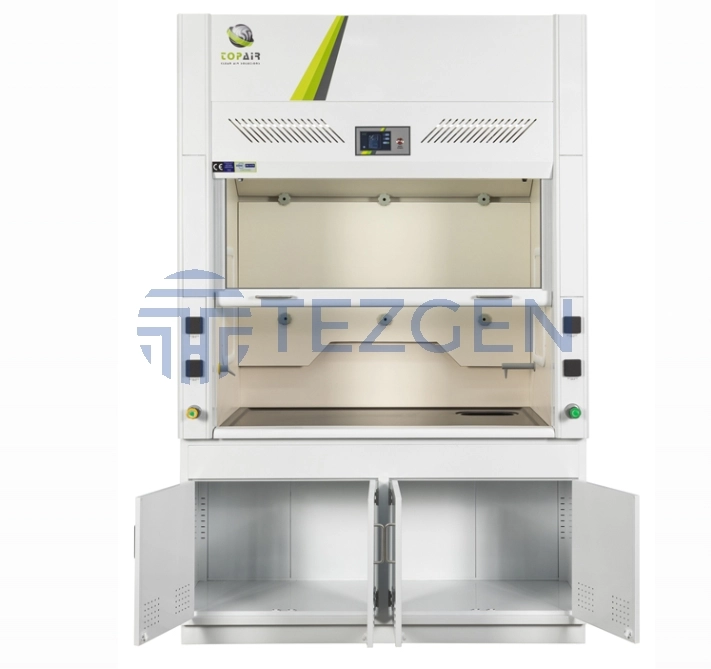

Topair System Metal Body Fume Hood FH -180
Topair System Metal Body Fume Hood FH Series
Turkey Distributor: Tezgen Laboratory
The basic control system is a 7-inch color touchscreen that controls lighting and outlets.
Optional control system upgrades:
AFA system - includes a 7-inch screen with air speed indicator and alarm.
The VAV system includes automatic air speed control (installed and included VFD) and a 10.1-inch screen with temperature and humidity indicators.
The active system features an energy-efficient 10.1-inch screen with proximity detection and automatic sash movement.
*The active system significantly reduces energy costs.
800 lux LED lighting (explosion-proof lighting option) separated from the work area
Optional accessories such as faucets, sinks, sockets, a ladder, and an outdoor fan
EN-14175, ASHRAE 110-1995, CE certified
Technical Specifications of Topair System Fume Hood Standard Models
Front Wing Maximum Opening 860 mm / 33.8 in
Manufacturing/Testing Standard EN-14175 / ASHRAE 110-1995
Air Velocity 0.5±0.1 m/s, 100±20 fpm
Hood Material Metal epoxy-coated paint
Countertop: Standard countertop is ceramic; other options include:
HPL / polypropylene / epoxy / stainless steel
Control System: Standard control system includes a 7-inch color display with on/off control
Optional water faucet / gas faucet / vacuum faucet / PP sink Triplex glass / explosion-proof lighting
Power Supply: 110/220 V, 50/60 Hz.
Includes a single-phase power supply. A three-phase power supply can be ordered separately.
Illumination: 800 lux
Addable Options
Model Description
FH-ACTIVE active wing system with 10.1-inch display
The FH-AFA standard control system is a 7-inch on/off control. Other options include: airflow alarm and 7-inch display
FH-FAN-1500-300 Centrifugal fan 1.5 kW 2800 rpm / IE3 Diameter 300 mm
FH-PP-KP4B Polypropylene bowl sink
FH-FAN-750 Centrifugal fan 0.75 kW 2800 rpm / IE3 Diameter 250 mm
FH-GTAP Gas tap
FH-KIT Range Hood Kit includes: 1 water tap, 1 gas tap, 1 bowl sink, and 4 electrical outlets
FH-SOCKET Electrical outlet
FH-VAV Airflow monitor with audible alarm, VAV + VFD controller, including 7-inch LCD touchscreen
FH-WTAP Water tap
