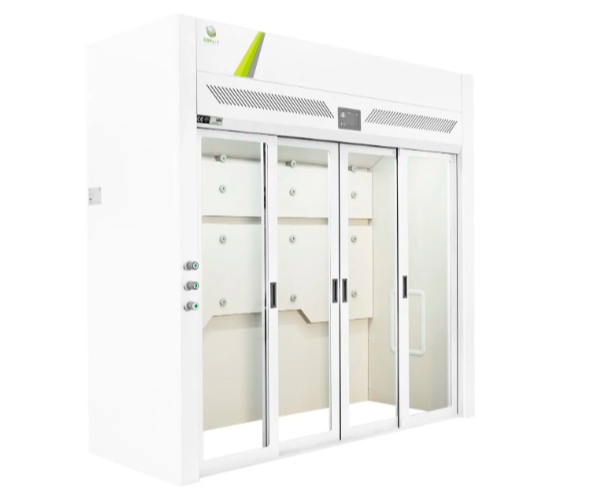

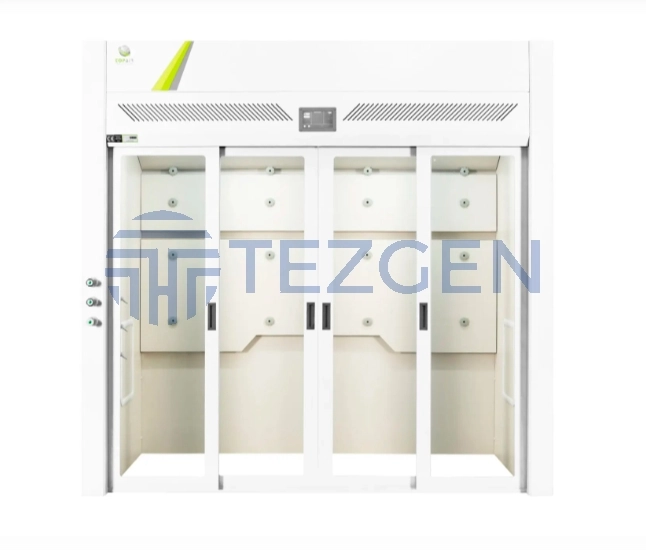

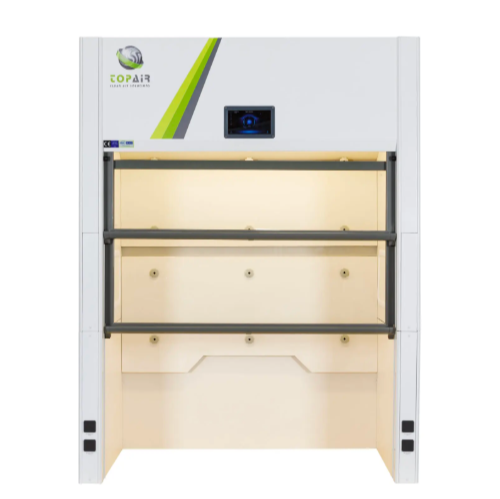

Topair Walk-in Fume Hood FH-180-WI with Metal Body
The Topair Walk-in floor-mounted fume hood features a wide front opening designed for the transport of large, heavy, or tall equipment.
It protects laboratory personnel from harmful fumes released by acids, hazardous gases, and organic solvents (materials and acids that conventional steel fume hoods cannot withstand).
The fume hood is constructed from high-quality, non-corrosive metal with excellent chemical resistance. The metal increases the product's tensile strength and improves its thermal properties.
Harmful and irritating chemical fumes are removed from the controlled environment to provide a safe and pleasant work environment. The fume hood exhausts chemical vapors from the building using an external fan mounted on the roof or exterior wall.
The fume hood is designed for use with heavy chemicals, independently tested, and certified to EN-14175/CE/ASHRAE 110-1995.
Large front opening to accommodate large, heavy, or long objects
• Highly chemically resistant metal construction
• Large front window, 1.80 mm high
• One-piece welded construction
• Tempered glass sliding front sash
• Environmentally friendly, cost-effective 800 LUX LED lighting, separated from the work area
• Optional: sink/water tap/gas tap/vacuum tap
• 7-inch color touchscreen for lighting and power control, optional VAV system
• Optional upgrade to AFA system with sensor-based air velocity monitoring and display, and alerts for deviations
• EN-14175 / CE / ASHRAE 110-1995 certified
FH-FAN-1500-300 Centrifugal fan 1.5 kW 2800 rpm / IE3 DIA 300 mm
FH-PP-KP4B Sink with polypropylene cup (more sizes available, see website) (See page)
FH-FAN-750 Centrifugal fan 0.75 kW 2800 rpm / IE3 DIA 250 mm
FH-GTAP Gas tap
FH-KIT for fume hood includes: 1 water tap, 1 gas tap, 1 sink, and 4 electrical outlets
FH-SOCKET Power outlet
FH-VAV Airflow monitor with audible alarm, VAV+VFD, including 7-inch LCD touchscreen controller
FH-WTAP Water tap
